Chain hoist with Geared Trolley-B TYPE

1、Compact structure design sith hoist.2、Lower running height saves cost.
|
Model |
BOG192 |
BOG193 |
BOG194 |
BOG195 |
BOG196 |
BOG197 |
BOG198 |
BOG199 |
BOG200 |
BOG201 |
|
Capacity load(t) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
7.5 |
10 |
15 |
20 |
|
Test load(KN) |
7.35 |
14.71 |
22.06 |
29.42 |
44.13 |
61.29 |
98.06 |
122.58 |
196.12 |
245.17 |
| Min.radius of curve(m) |
0.85 |
1.0 |
1.1 |
1.1 |
1.3 |
1.4 |
2.0 |
2.0 |
3.5 |
3.5 |
|

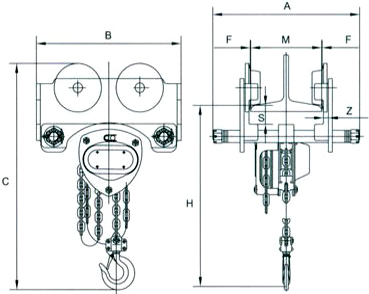

Dimensions(mm) |
A |
a |
236 |
303 |
310 |
317 |
333 |
355 |
372 |
378 |
449 |
449 |
|
b |
286 |
405 |
412 |
419 |
435 |
457 |
474 |
480 |
551 |
551 |
|
B |
258 |
292 |
319 |
358 |
434 |
448 |
628 |
636 |
757 |
887 |
|
C |
385 |
451 |
489 |
551 |
629 |
758 |
916 |
965 |
1020 |
1200 |
|
H |
299 |
331 |
383 |
411 |
460.5 |
585 |
707 |
745 |
750 |
915 |
|
S |
30 |
35 |
38 |
38 |
40 |
42 |
45 |
45 |
56 |
58 |
|
Z |
7.5 |
10.5 |
10.5 |
12 |
14 |
15 |
- |
- |
- |
- |
|
F |
1.5-3 |
2-3.5 |
|
I beam width
range (mm) |
M |
a |
50-152 |
64-203 |
74-203 |
88-203 |
100-203 |
114-203 |
124-203 |
124-203 |
136-203 |
136-203 |
|
b |
50-203 |
64-305 |
74-305 |
88-305 |
100-305 |
114-305 |
124-305 |
124-305 |
136-305 |
136-305 |
|
Net weight(kg) |
a |
15.5 |
23.8 |
35.5 |
46 |
61.5 |
85.5 |
130 |
147 |
278 |
331 |
|
b |
17.5 |
25.8 |
37.5 |
48 |
65.5 |
90.5 |
136 |
154 |
285 |
339 |
