Din763 Link Chain G30

DIN763 LINK CHAIN G30
1.Electro Zinc Plated Or Hot Dipped Galvanised.
2.Stainless Steel AISI 304/AISI 316.

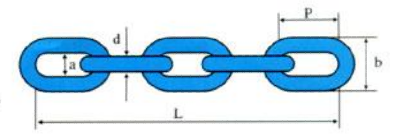

ITEM NO	SIZE		P		b		WORKING	TEST	BREAKING	WEIGHT
	SIZE		P		b		LOAD	LOAD	LOAD	PER M
	MM	±MM	MM	±MM	MM	±MM	KG	N	N	KG
BOB023	2	0.5	22	1	8	0.4	25	800	1250	0.06
BOB024	2.5		24	1.1	10	0.5	40	800	2000	0.1
BOB025	3		26	1.2	12	0.6	55	1050	3200	0.15
BOB026	3.5		28	1.3	14	0.7	80	1540	3850	0.2
BOB027	4		32	1.5	16	0.8	100	2000	6000	0.27
BOB028	4.5		34	1.7	18	0.9	128	2500	6300	0.35
BOB029	5		35	1.8	20	1	160	3150	10000	0.43
BOB030	5.5		38.5	1.8	22	1.1	195	3800	9500	0.52
BOB031	6		42	2	24	1.2	224	4500	14000	0.63
BOB032	7		49	2.5	28	1.4	300	6000	18000	0.86
BOB033	8		52	2.5	32	1.6	400	8000	25000	1.1
BOB034	8.5		56	2.8	34	1.7	460	9000	22500	1.25
BOB035	9		59	3	36	1.8	530	10500	32000	1.41
BOB036	10	1	65	3.2	40	2	630	12500	40000	1.75
BOB037	11		72	3.4	44	2	790	15800	47500	2.11
BOB038	12		78	3.6	48	2.3	940	18800	56500	2.55
BOB039	13		82	4	52	2.5	1000	21200	63000	2.95
BOB040	16		100	5	64	3.2	1600	33000	100000	4.45
BOB041	18		113	5.2	70	3.2	2120	42300	127000	5.65
BOB042	19		119	5.6	72	3.4	2370	47300	142000	6.25
BOB043	20		120	6	75	3.8	2500	50000	160000	7
BOB044	22		127	6	82	4	3170	63300	190000	8.55
BOB045	25		140	6.6	85	4.2	4090	81700	245000	10.9
BOB046	28		152	7	96	4.7	6000	120000	300000	13.9
BOB047	32		171	7.8	108	5.2	8000	160000	400000	18.2
