Electric Chain Hoist-Type Bo-A Model

BO-A has such characteristics as fast lifting speed, convenient operation and beautiful appearance. Especially, its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product. It is widely used in lifting light and small goods. It can also be used in low-level space materials circulation system by mating with aerial travelling crane equipment. This product attests to be effective equipment which can improve working condition and enhance labor efficiency.

MODEL  BOG153 BOG154 BOG155 BOG156 BOG157 BOG158
 Capacity (t)   0.5 1 2 3 3 5
 Standard (m) 3 3 3 3 3 3
 Lifting speed (m/min) 7 7 3.5 2.3 4 2.6
 Motor power (kw) 0.8 1.6 1.6 1.6 3 3
 Power supply  3-Phase/380V/50Hz
 Insulation grade F
 Rating 40%
 Spec.of load chain φ7.1*21     φ9*27
No.of chain  1 1 2 2 2 3
 Running test load (t) 0.625 1.25 2.5 3.75 3.75 6.25
 Length of the lable (m) 2.5 2.5 2.5 2.5 2.5 2.5
 Net weight (kg) 50 55 60 65 78 85
Extra weight Per meter of extra lift (kg) 1.1 1.1 2.2 3.3 3.5 5.3
 Minium distance between hooks (mm) 500 520 630 710 800 850

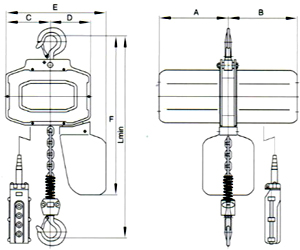

Dimension A(mm) 245 245 245 245 265 265
B(mm) 245 245 245 245 265 265
C(mm) 158 158 124 124 127 127
D(mm) 142 142 176 176 205 205
E(mm) 350 350 350 350 393 393
F(mm) 600 600 610 620 738 738
